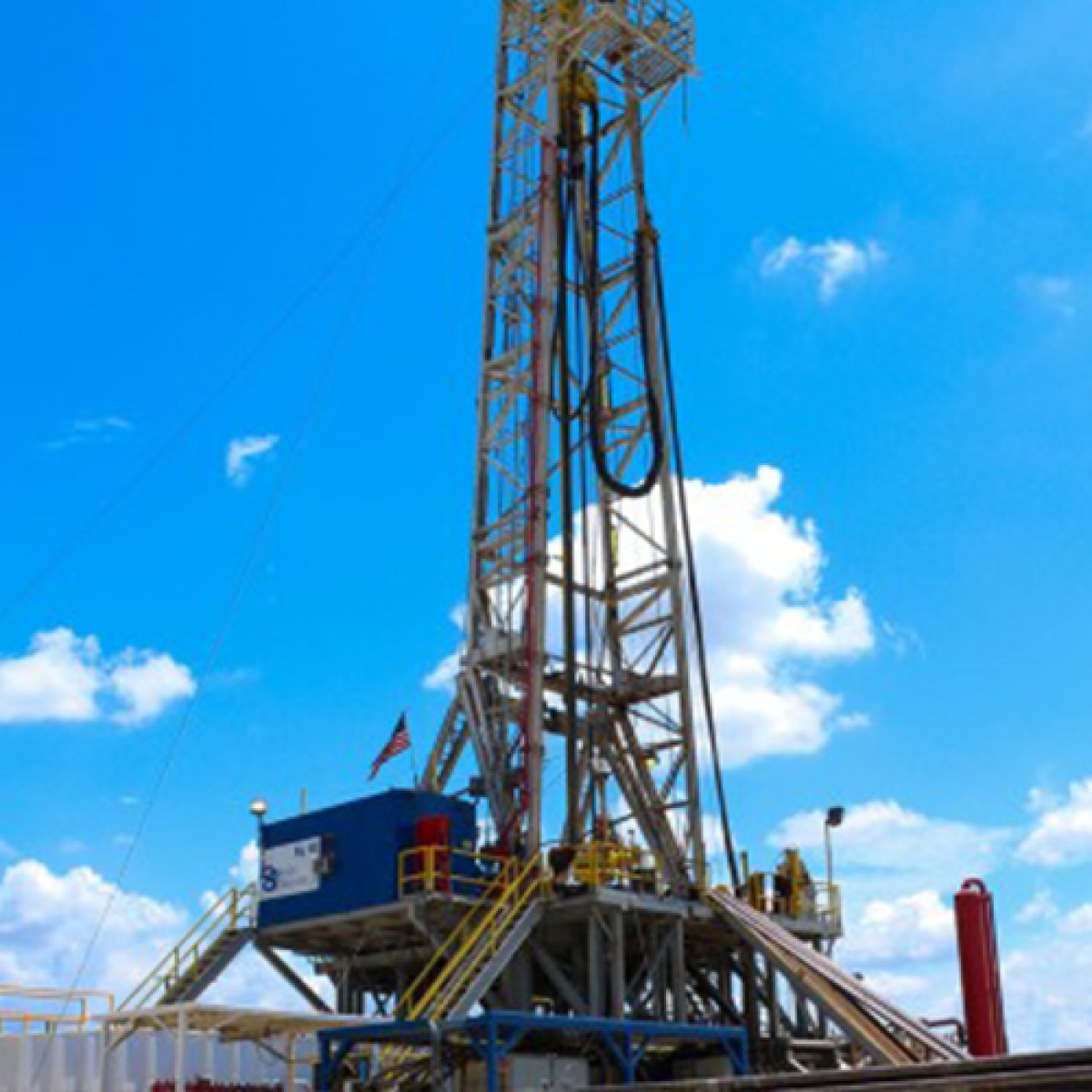

Rig 102 Files
| Conductor Casing Schematic |
| Rig Spec Sheet |
| Drill Site Layout |
Hoisting & Rotation
| Drawworks: | Oilwell 760-E (1200HP) powered by (2) GE 752 traction motors Parkersburg 56053 auxiliary brake |
| Top Drive: | Canrig 6027 AC Electric 600 HP 275 Ton AC Electric Drive -Integrated swivel -Pipe Handler -Integrated backup leg -Max Drilling Torque = 30,000 ft-lb -Max Breakout Torque = 60,000 ft-lb -Maximum Speed = 225 RPM |
| Traveling Block and Hook: | TFI 250 ton becket |
| Rotary Table: | TFI ZP-275 (27 ½") |
Mast & Substructure
| Mast: | Superior Derricks 136' w/ 550,000# capacity on 10 lines |
| Substructure: | Superior Derricks 20' box-on-box substructure 550,000# rotary table supporting capacity 350,000# pipe setback load capacity |
BOP
| BOP’S: | 11" x 5,000 psi Shaffer annular 11" x 5,000 psi Shaffer LWS double |
| Accumulator System: | CPC 8 Station accumulator |
| Choke Manifold: | 10,000 psi choke manifold |
Mud System
| Mud Pumps: | (2) JIG 1600 (1600HP each) triplex pumps each independently powered by (2) GE 752 traction motors |
| Mud Pits: | (2) tank system -1000 bbl capacity w/ 60 bbl slug pit |
| Solids Equipment: | (2) Derrick Super-G linear shale shakers (1) 10" 2-cone desander (1) 5" 10-cone desilter (5) mud agitators (1) Mud gas separator |
Power
| System: | (3) Caterpillar 399-B engines (1200HP each) w/ Kato 1030 KW AC synchronous generators |
| SCR System: | International Electric Company Systems (IPS) 3 X 4 (1500HP) SCR house w/ GE evolution 9000 MCC |
Pipe Handling
| Floorhand: | Bloom + Voss FloorHand FH-80 |
| Laydown: | Canrig PC 3000 Automated Catwalk |
Tubulars
| Drill Pipe: | 4 ½" 16.60# G-105 drill pipe |
| Drill Collars: | 8" Round Drill Collars 6 ½" Spiral Drill Collars |
Storage Tanks
| Drilling Water: | 500 bbl capacity |
| Fuel: | 9,500 gallon capacity |
Auxiliary
| Equipment: | NOV MD-TOTCO EDR (base system) Rig Manger and Crew Quarters (2) air hoists (10,000# capacity each) Electronic survey unit w/ 15,000' wire line machine Drill pipe spinner Top drive Supervisor |
